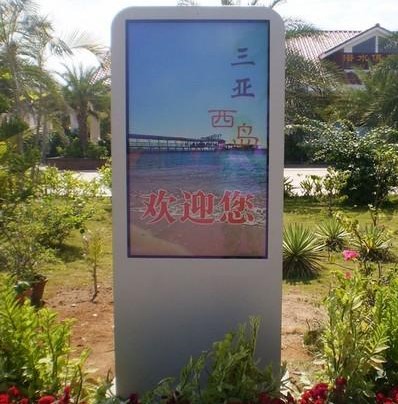

Floor Stand Outdoor Digital Signage
Introduction of Product
According to IP65 standard using high sealing design, standard vertical appearance can effectively protect it from dust and liquids. Our equipment galvanized surface with special outdoor paint. Thus, it was waterproof, sun protection, anti-corrosion and explosion-proof in order to improve the life cycle of the whole machine. Built-in 2000 Lumen industrial-grade high-brightness screen, combined with anti-glare tempered glass on the front, reduces external light reflection, making the screen color more vivid and bright to suit many scenes. At the same time, the whole machine is equipped with different scheme designs, with internal intelligent dimming and temperature control system to prevent equipment from fogging, condensing and other issues.
Optional plans
1. Normal type
2. Android type
Parameters
| Panel | Panel size | 55" | 65" |
| Resolution | 1920*1080 | 3840*2160 |
| Active Area | 1209.6*680.4mm | 1428.48*803.52mm |
| Aspect Ratio | 16:9 |
| View Angle | 89°(H) / 89°(V) |
| Response Time | 12ms | 10ms |
| Contrast Ratio | 4000:1 (typ.) | 4000:1 (typ.) |
| Brightness | 2000 cd/m² | 2000 cd/m² |
| System | Solution | RK3188 |
| CPU | CORTEX-A7 |
| GPU | MAIL-400MP4 |
| RAM/ROM | 2G/8G |
| WIFI | 2.4G |
| Speaker | 8Ω/10W |
| Language | Chinese/ English |
| OS | Android4.4 |
| Connect type | USB | 2 |
| TF | 1 |
| RJ45 | 1 |
| HDMI | 1 |
| Power | Voltage | AC90-240V 50HZ/60HZ |
| OPS Power | ≦700W | ≦800W |
| Standby (Watt) | ≦5W | ≦5W |
| Environment | Working Temperature | -40°C ~ 55°C/20%-80% |
| Storage Temperature | 10°C ~ 60°C/10%-60% |
| Waterproof Level | IP65 |
| MAX Working Time | 24h/day |
| Intelligent control | Brightness Control | Auto-sensing |
| Temperature Control | Intelligent Temperature Control |
| Structure | Frame Material | Metal + 6MM Toughened Glass |
| Installment | Standalone |

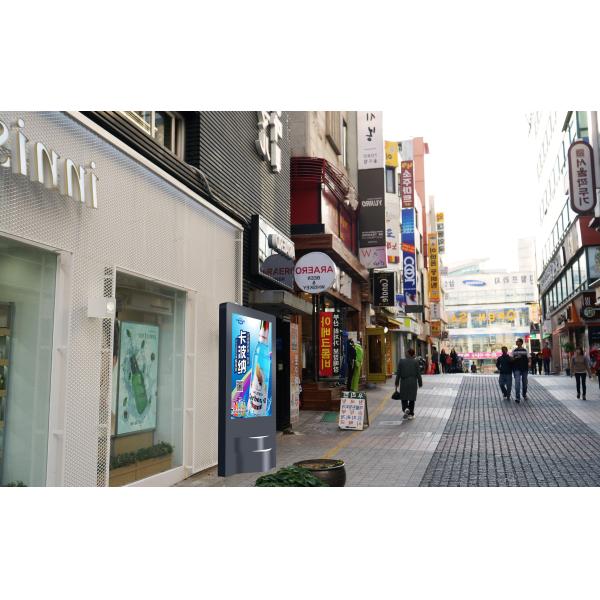

Application Scenes
1. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
2. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
3. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
4. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
